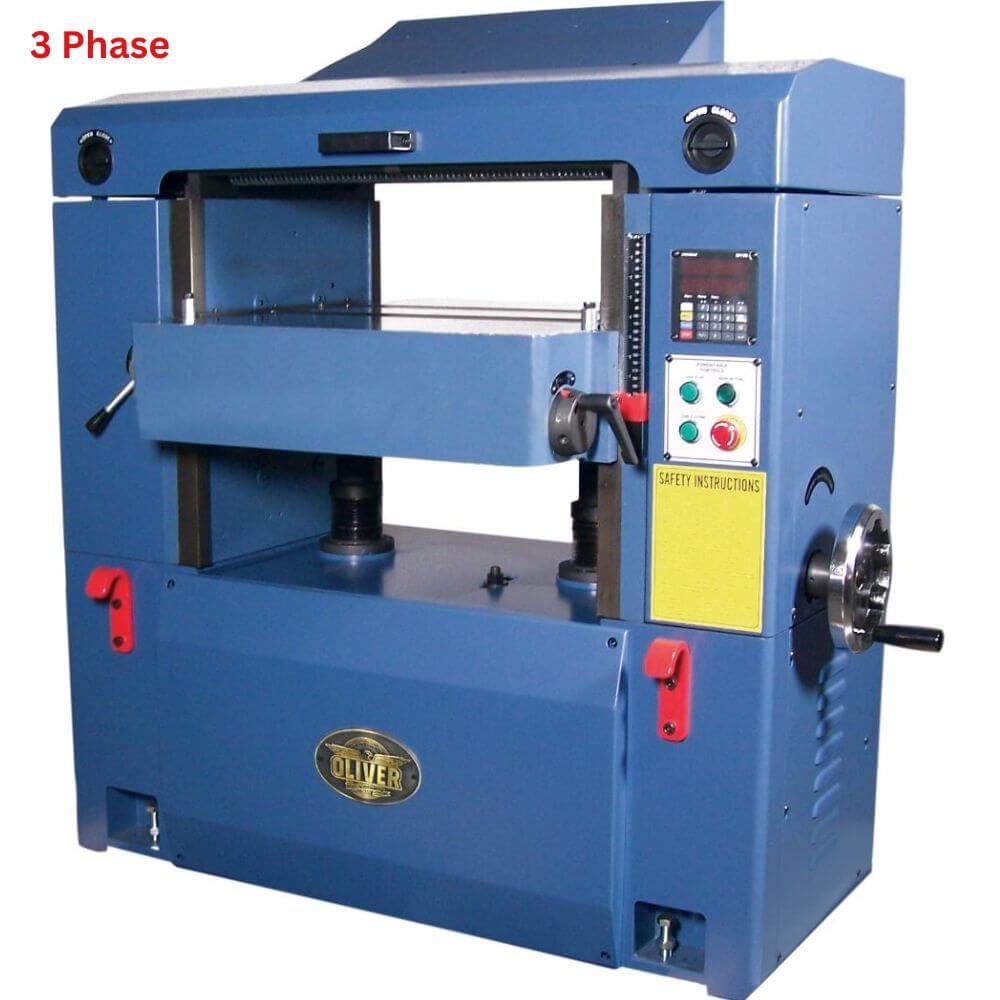

Oliver Machinery 25 inch Planer with HCX Helical Cutterhead 4470
Improve your woodworking experience with the Oliver 25” Planer, built for unmatched precision, power, and durability. Featuring the HCX Helical Cutterhead, this machine delivers flawless, tear-free cuts on even the toughest hardwoods. Its massive cast iron construction ensures rock-solid stability, reducing vibration for perfectly smooth finishes every time.
The 3-speed gearbox allows you to fine-tune the feed rate, while the digital readout control panel provides pinpoint accuracy for thickness adjustments. A power-assisted table makes height adjustments effortless, and the dual outfeed rollers handle heavy stock with ease. Maintenance is a breeze with quick-access panels, while the 5” dust chute keeps your workspace clean.
Whether you’re a commercial woodshop or a professional craftsman, this powerful 10HP single-phase motor ensures you have the strength and reliability needed for any project. Precision, efficiency, and craftsmanship—experience the Oliver difference today
Heavy-duty build, featherlight finishes—experience the Oliver difference
Features & Benefits Oliver Machinery 25 inch Planer with HCX
Elevate your woodworking with a machine designed for those who demand efficiency and reliability. Whether you're crafting fine furniture or handling large stock, this planer transforms rough lumber into flawless, smooth boards with ease. Its exceptional build quality ensures stability and accuracy, allowing you to focus on your craft without worrying about inconsistencies or rework.
Every pass through this machine results in a surface so refined, sanding becomes almost unnecessary. Designed for professionals and passionate artisans alike, it delivers the kind of seamless operation that makes woodworking more enjoyable and less labor-intensive. Thoughtfully engineered for long-term performance, it minimizes maintenance while maximizing productivity. With an intuitive design and effortless adjustments, you’ll work faster, smarter, and with complete confidence in every cut.
If you take pride in craftsmanship and want a tool that enhances both your skills and efficiency, this planer is the perfect addition to your workshop. Invest in precision, and let your work speak for itself.
HCX Helical Cutterhead for Ultra-Smooth Finishes
The Oliver HCX helical cutterhead, equipped with 125 precision carbide inserts, ensures a flawless, tear-out-free finish on even the toughest hardwoods. The inserts are indexed for quick replacements, so you spend more time working and less time maintaining.
Powerful 10HP Single-Phase Motor for Heavy-Duty Performance
With a 10-horsepower TEFC motor, this planer delivers relentless power, handling even the thickest stock with ease. It operates on 240V single-phase power, making it ideal for high-demand professional workshops.
Massive Cast Iron Construction for Rock-Solid Stability
Built to last, this planer’s heavy-duty cast iron frame and table provide unmatched stability, reducing vibration for precise, repeatable cuts every time.
25-Inch Wide Capacity for Large Projects
Designed to handle wide stock up to 25 inches, this planer is perfect for furniture makers, millwork professionals, and serious hobbyists working with oversized boards.
Three-Speed Gearbox for Total Feed Control
A 3-speed gearbox lets you choose the perfect feed rate (20, 25, or 30 feet per minute), balancing efficiency with surface smoothness based on your project needs.

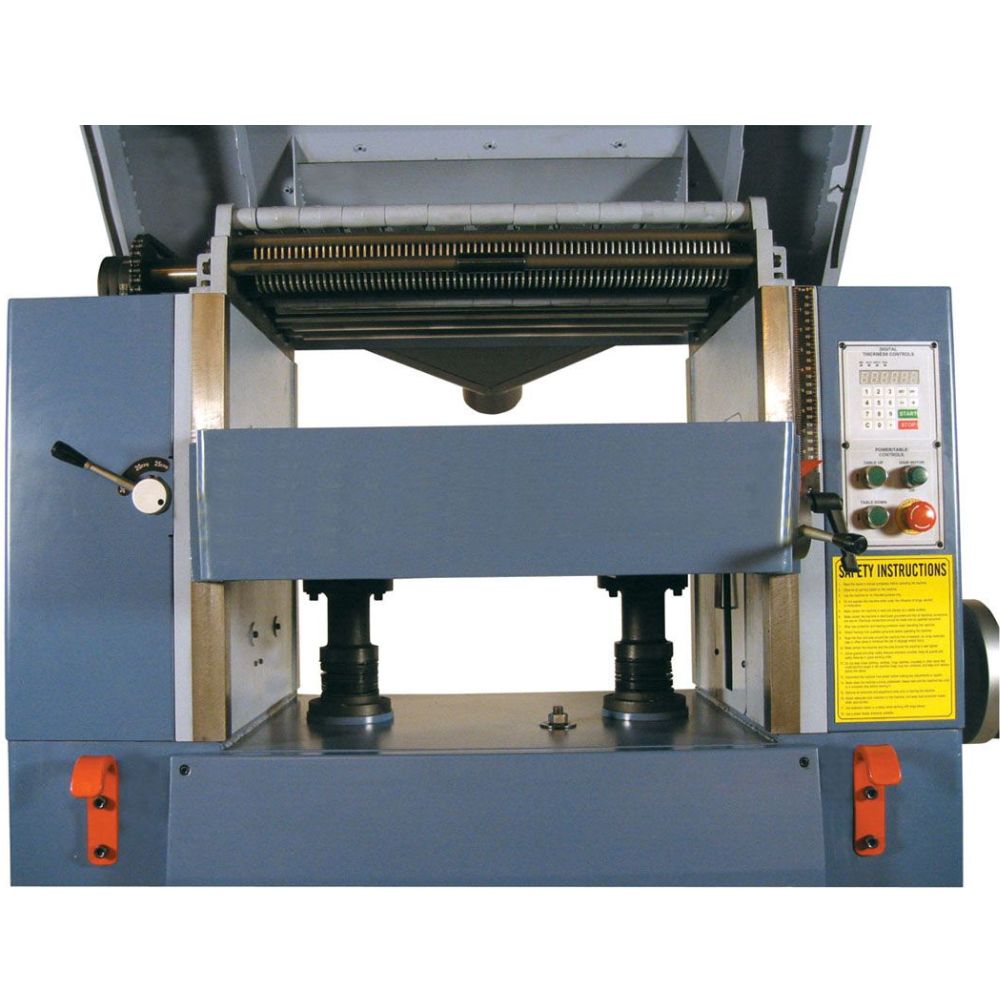

Digital Readout Control Panel for Pinpoint Accuracy
The user-friendly control panel features a digital readout, allowing for precise thickness adjustments, so you can achieve the exact dimensions required for your project.

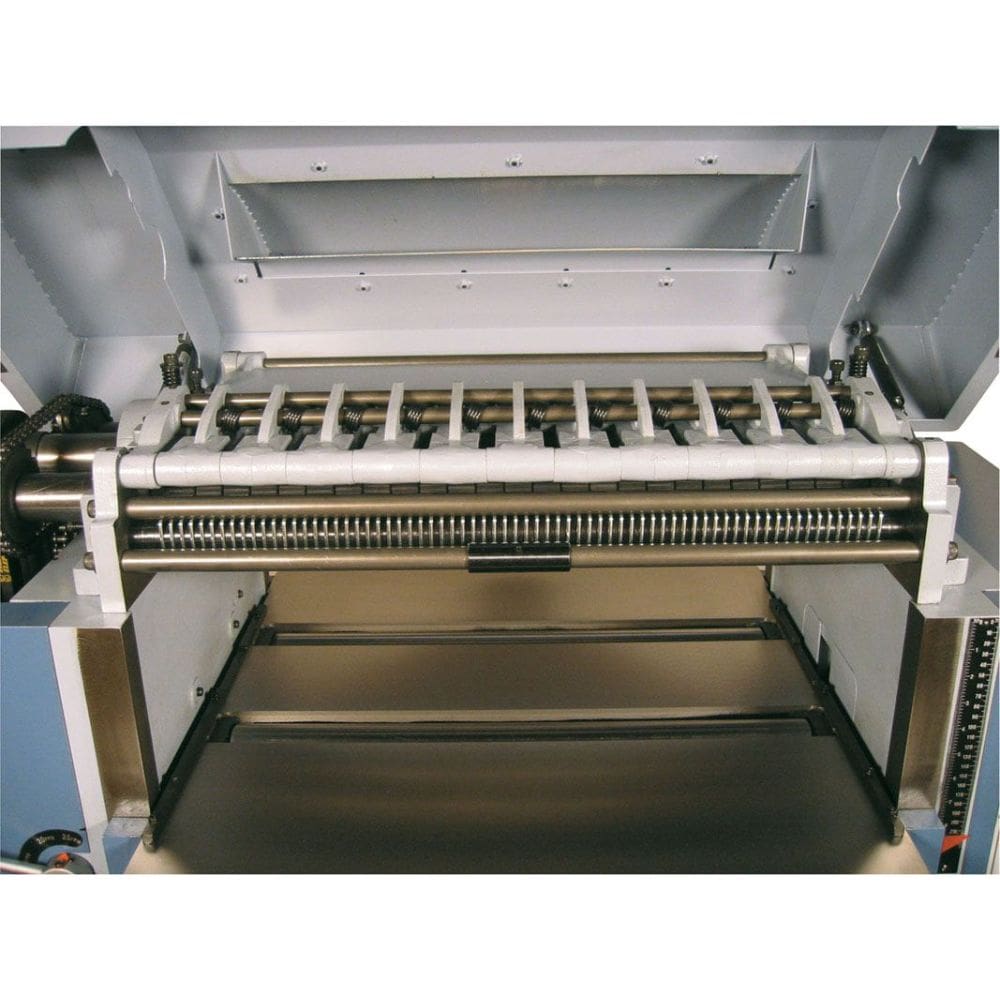

Segmented Infeed Roller & Sectional Chip Breaker for Rough Stock Handling
Even the roughest, most uneven boards are no problem, thanks to a segmented infeed roller and sectional chip breaker, ensuring a smooth and controlled feed into the cutterhead.
Dual Outfeed Rollers for Effortless Material Support
Two steel outfeed rollers help guide heavy stock smoothly out of the planer, reducing strain on the operator and ensuring consistent results.
Power-Assisted Table for Effortless Adjustments
Adjusting the table height is a breeze with power-assisted controls, allowing you to make quick, precise changes without manual cranking.
5” Dust Chute for Efficient Chip Removal
A large 5-inch dust port easily connects to your dust collection system, keeping your workspace clean and preventing debris buildup in the machine.
Shave time off your projects, not quality
What's included? Oliver Machinery 25 inch Planer with HCX
- 25” Planer with Oliver HCX Helical Cutterhead
- Carbide inserts
- Cast iron frame
- Built-in table rollers
- Segmented infeed roller
- Dual outfeed rollers
- Three-speed gearbox
- Magnetic controls with emergency stop
- Digital control panel
- Power-assisted table
- Hinged cutterhead access
- 5” dust chute
- Motor, drive train, and gearbox
- 10HP TEFC motor (single-phase)
- Adjustable bed rollers
Why settle for less when you can plane with the best?
Specifications Oliver Machinery 25 inch Planer with HCX
-
Model & Power: 4470 model, 10HP TEFC motor, 240V, single-phase
-
Cutterhead: Oliver HCX Helical, 3-3/8” diameter, 4,800 RPM
-
Knives: 125 carbide inserts
-
Capacity: 25” width, 9-1/4” max thickness, 1/4” max cut
-
Stock Handling: 10” min length, 1/4” min thickness manual
-
Feed System: 3” segmented infeed, dual 3” steel outfeed
-
Bed Rollers: Two adjustable rollers for smooth operation
-
Feed Speeds: Three speeds at 20, 25, and 30 FPM
-
Table & Support: 26” x 32” table, two-column support
-
Dust Collection: 5” dust port, 900 CFM minimum required
-
Overall Dimensions: 46”L x 23”W x 56”H
-
Weight: 1,732 lbs. net, 1,850 lbs. gross
Product Manual & Assembly Oliver Machinery 25 inch Planer with HCX
Thank you for choosing the Oliver 25” Planer with HCX Cutterhead. This manual provides essential instructions to ensure safe operation, proper setup, and maintenance of your machine
Oliver Machinery 25 inch Planer with HCX Manual
