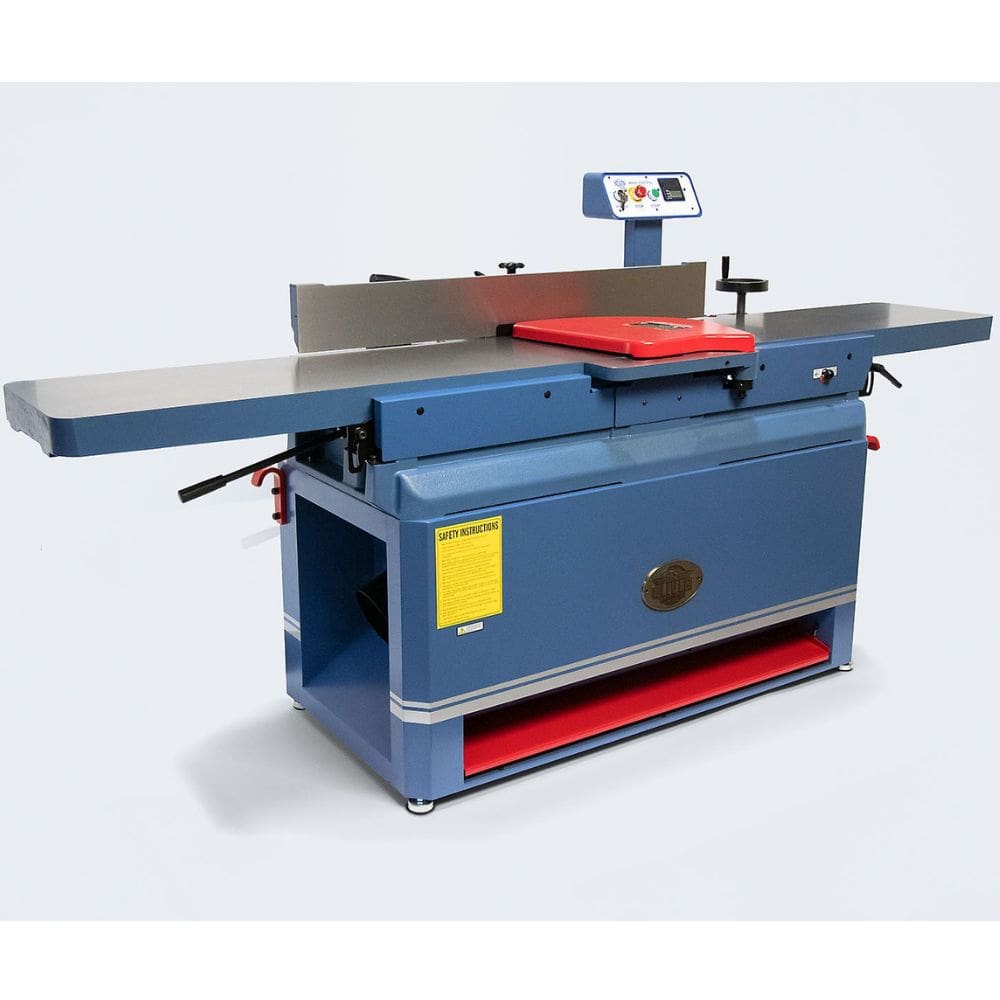

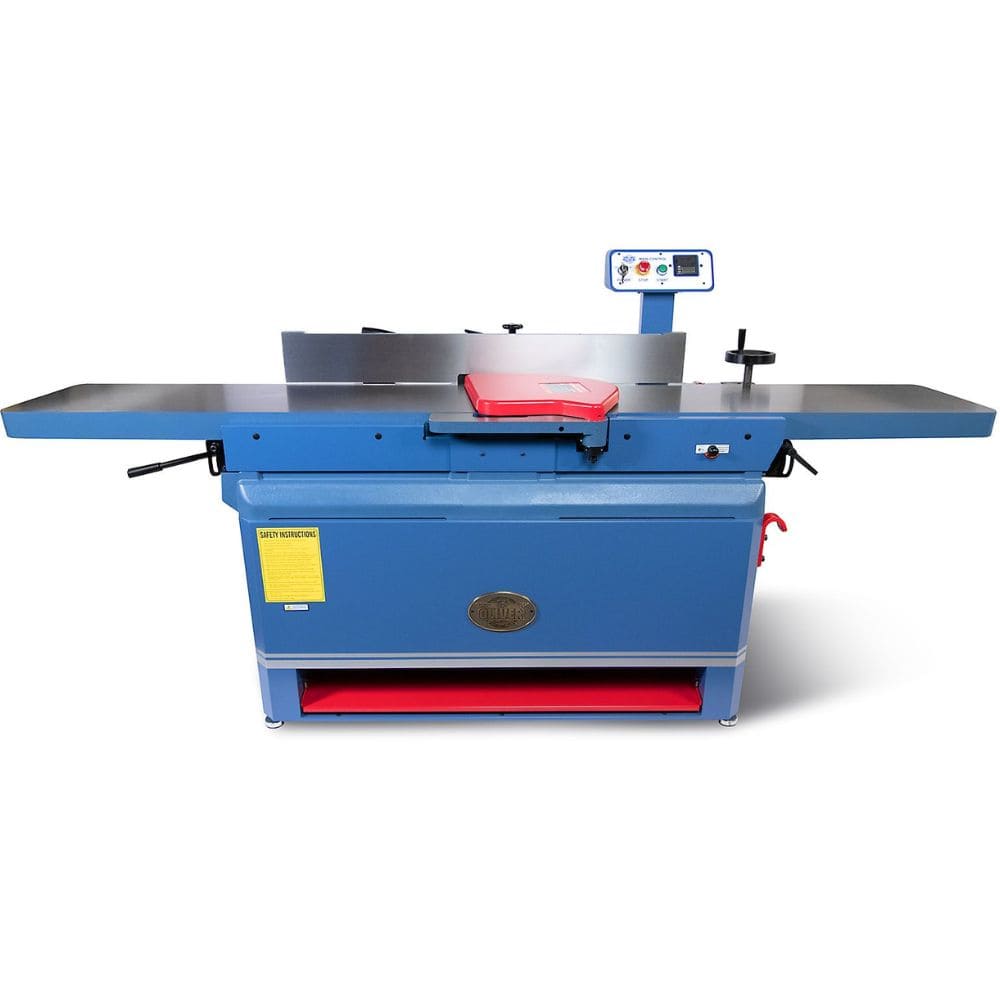

Oliver Machinery 16 inch Parallelogram Jointer 4275C
Precision, power, and performance—this 16" Parallelogram Jointer is built to elevate your craftsmanship. A true testament of accuracy and durability, this machine delivers buttery-smooth cuts with its Oliver HCX Helical Cutterhead, reducing tear-out and extending blade life.
The massive 100” cast iron table provides superior stability, ensuring every pass is as precise as the last. A powerful 5HP motor, paired with a Poly V-belt drive, delivers consistent, vibration-free operation. Fine-tune your cuts effortlessly with the Wixey Digital Readout and enjoy quick, tool-free fence adjustments for maximum efficiency. The parallelogram table design maintains perfect alignment, while the enclosed cabinet and 6” dust port keep your workspace clean. Safety is built in with a foot-activated emergency stop switch and elevated control panel.
Whether you're crafting fine furniture or handling large-scale projects, this jointer guarantees professional results every time. Step up your woodworking game with the precision you deserve!
No wobble, no hassle—just buttery-smooth precision
Features & Benefits Oliver Machinery 16” Parallelogram Jointer
Step up your woodworking game with a machine built for precision, power, and perfection. This jointer transforms rough lumber into flawless, straight-edged masterpieces with ease. Crafted for those who demand accuracy, durability, and smooth operation, it delivers impeccable results on every pass. The rock-solid construction provides stability, reducing vibrations and ensuring seamless cuts, while intuitive controls make adjustments effortless.
Designed to handle the toughest hardwoods without hesitation, this machine works as hard as you do—day in and day out. Its innovative design keeps your workspace cleaner, your workflow smoother, and your craftsmanship at its peak. With reliability you can trust and performance that exceeds expectations, this isn’t just another tool—it’s an investment in quality, efficiency, and excellence. If precision is your passion, this jointer is your new best friend, ready to take your woodworking to the next level.

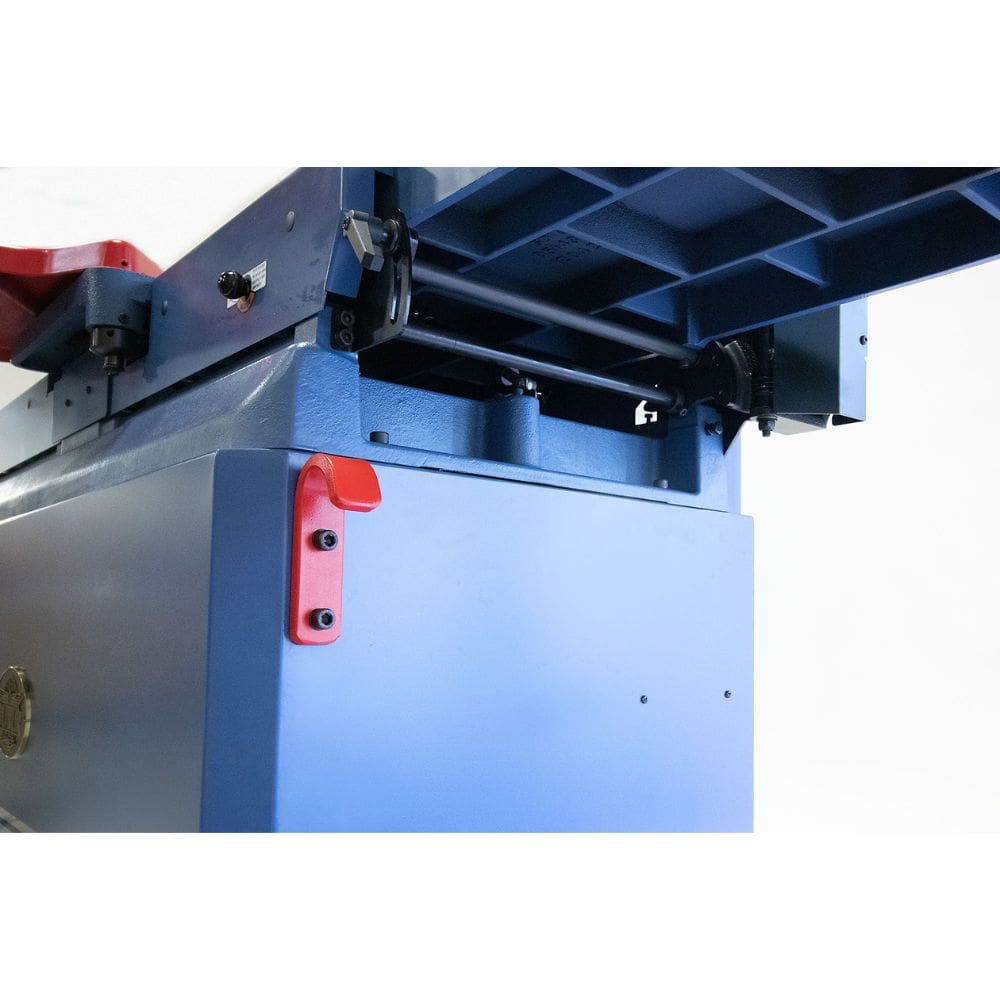

Precision Parallelogram Table Design
Engineered for accuracy, the parallelogram table system ensures smooth, precise cuts by keeping the table in perfect alignment with the cutterhead. This design minimizes the need for adjustments and maintains accuracy over time.

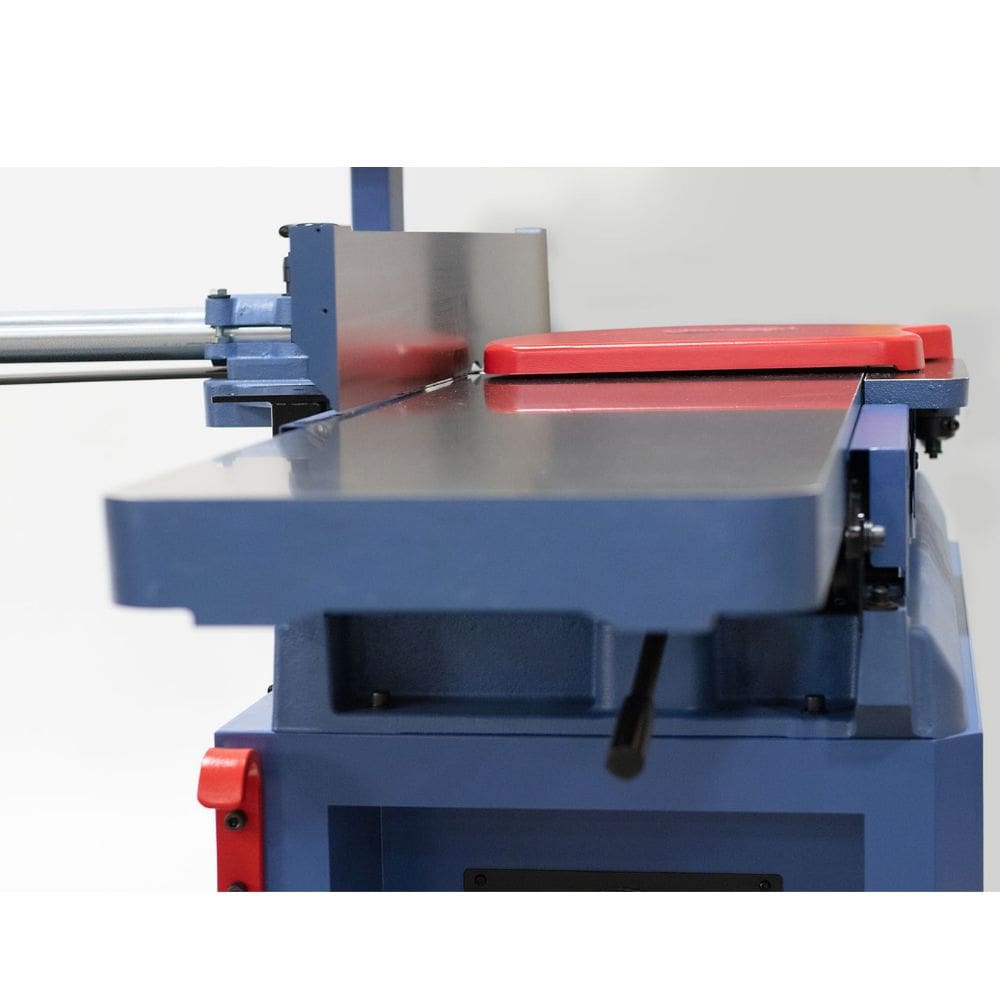

Extra-Long Cast Iron Tables
With a massive 100” length, these precision-ground cast iron tables provide an ultra-stable work surface, allowing for superior support when jointing long boards. You’ll achieve straighter edges with fewer passes, improving efficiency.

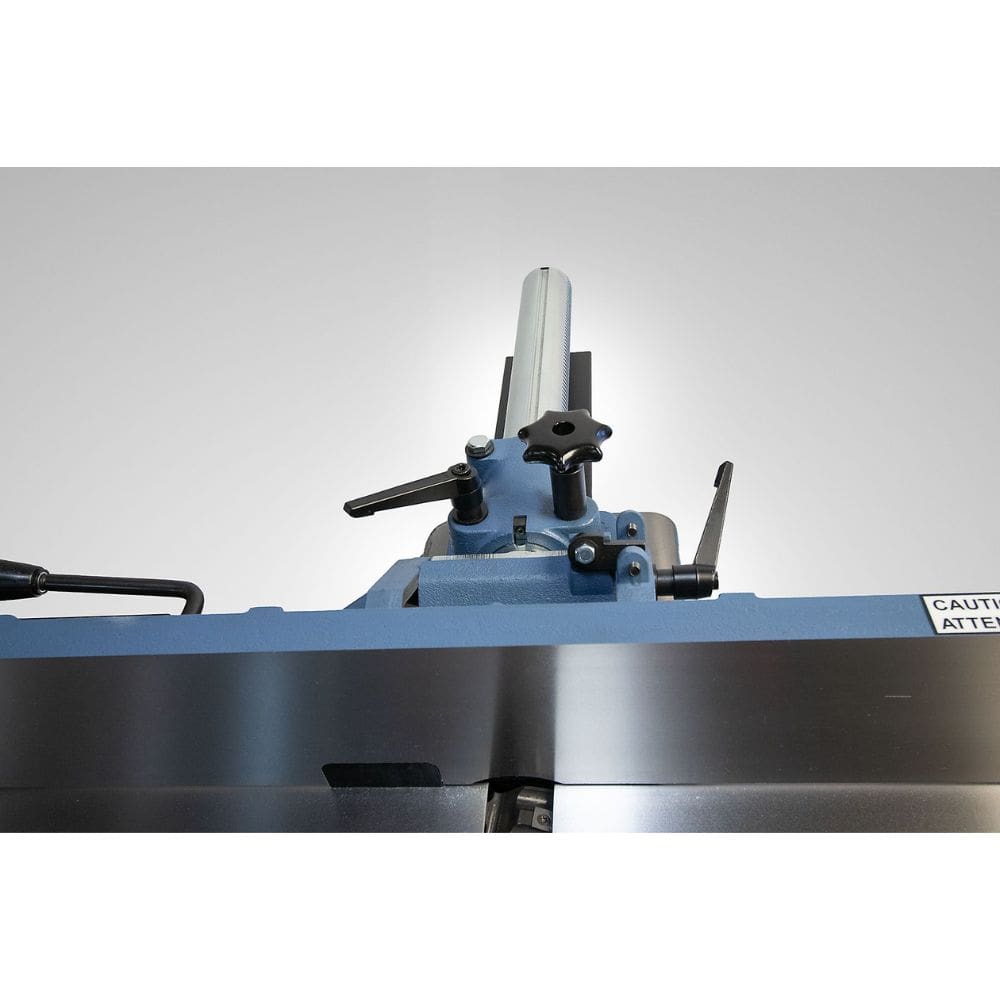

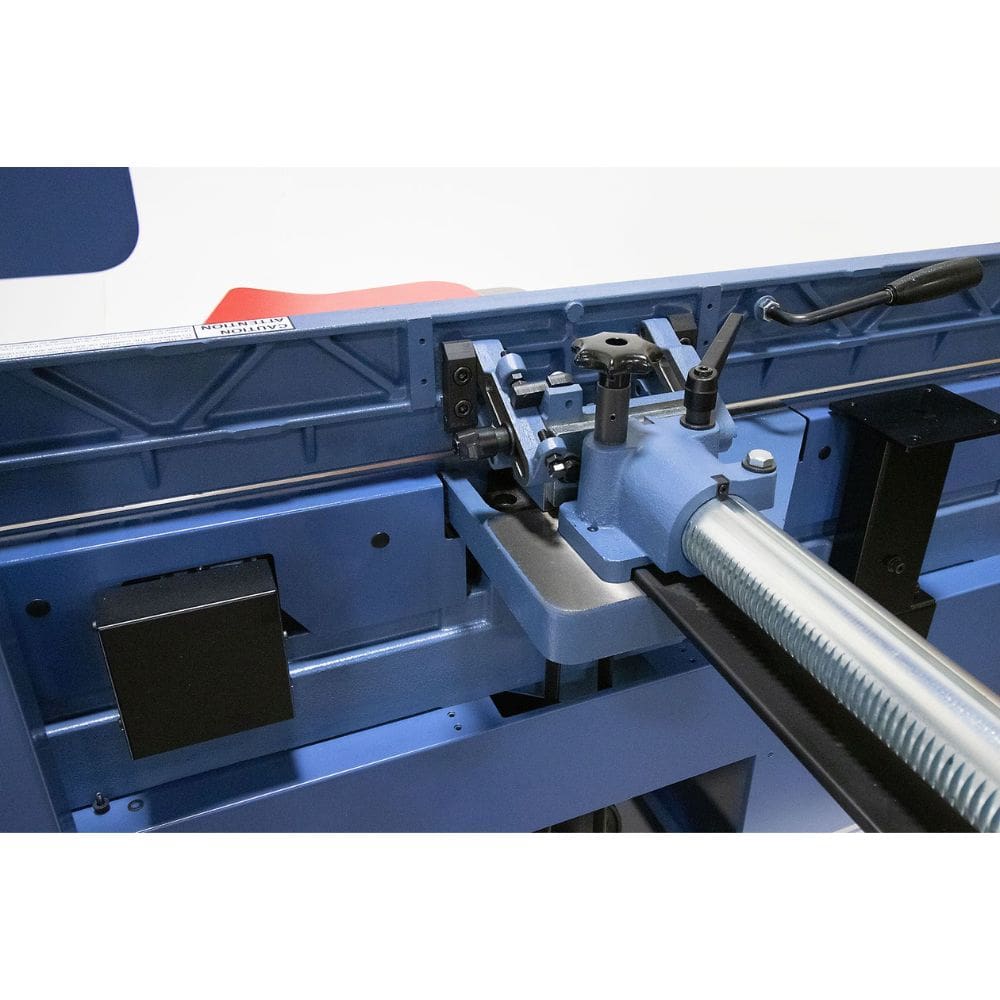

Massive Cast Iron Fence with Positive Stops
The solid 47” x 6” cast iron fence is designed for stability and precision. With positive stops at 45° and 90°, you can make accurate adjustments quickly, ensuring repeatable cuts with ease.
Oliver HCX Helical Cutterhead with 76 Carbide Inserts
This high-performance cutterhead features 76 four-sided carbide inserts that provide ultra-smooth, tear-out-free cuts. The indexed design makes changing inserts easy, saving time and money compared to traditional straight knives.
Powerful 5HP Motor for Effortless Performance
The robust 5HP, 1-phase motor delivers consistent power, allowing you to tackle even the hardest woods with ease. Whether you're working with oak, maple, or exotic hardwoods, this jointer ensures flawless results.
Wixey Digital Readout for Precision Adjustments
The built-in Wixey DRO allows for highly accurate infeed table adjustments, giving you precise control over your depth of cut. No more guesswork—just reliable, repeatable accuracy on every pass.

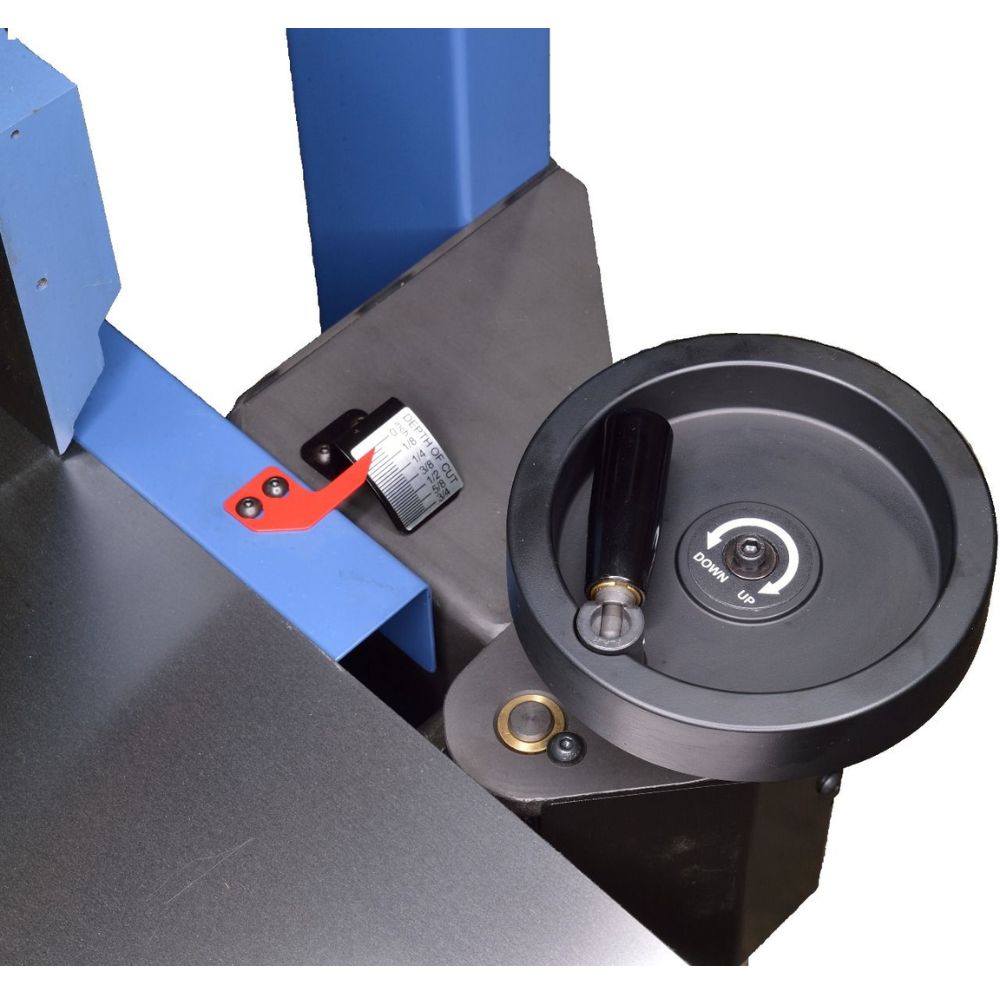

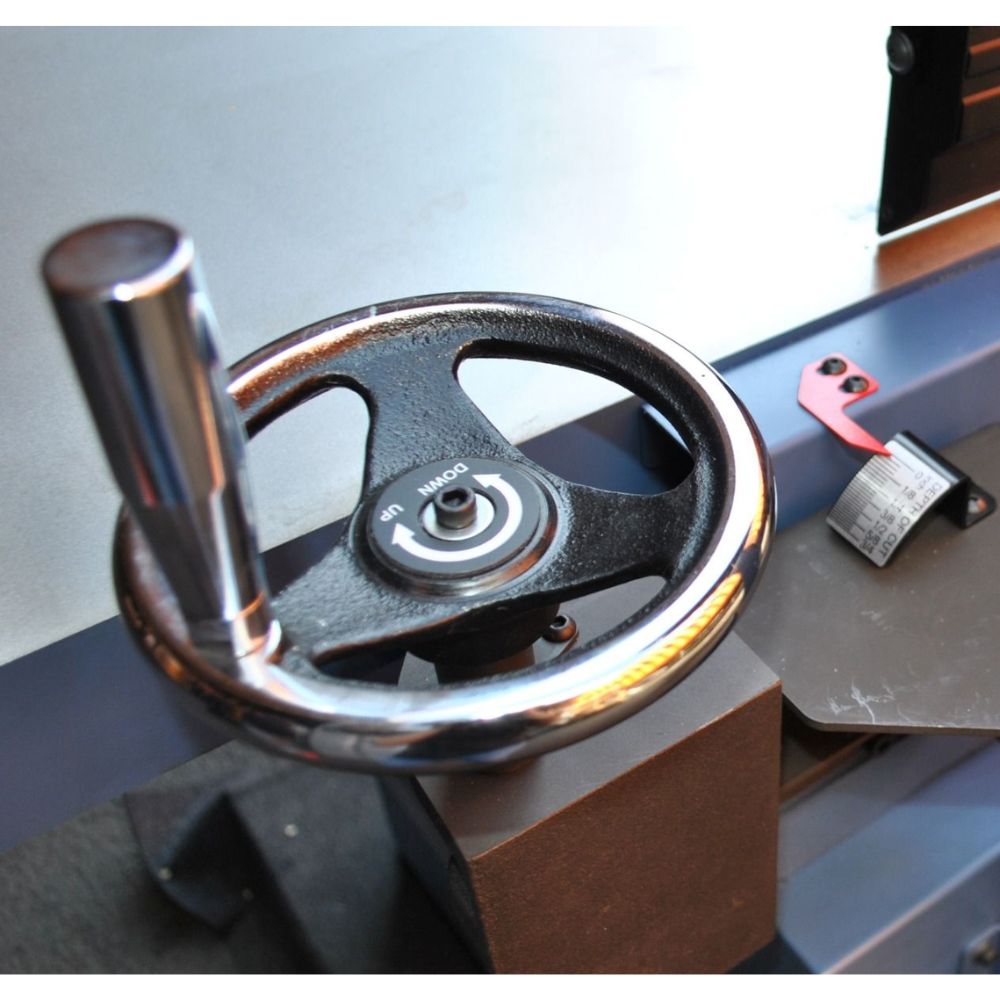

Handwheel and Lever-Controlled Table Adjustments
The infeed table is adjusted with a smooth handwheel that auto-locks during operation, while the outfeed table features an easy-to-use lever control. These intuitive adjustments make setup fast and efficient.
Fully Enclosed Cabinet with 6” Dust Port
Keep your workspace clean and safe with the fully enclosed cabinet that houses a powerful 6” dust port. This efficient dust collection system ensures debris is quickly removed, reducing airborne particles and maintaining visibility.

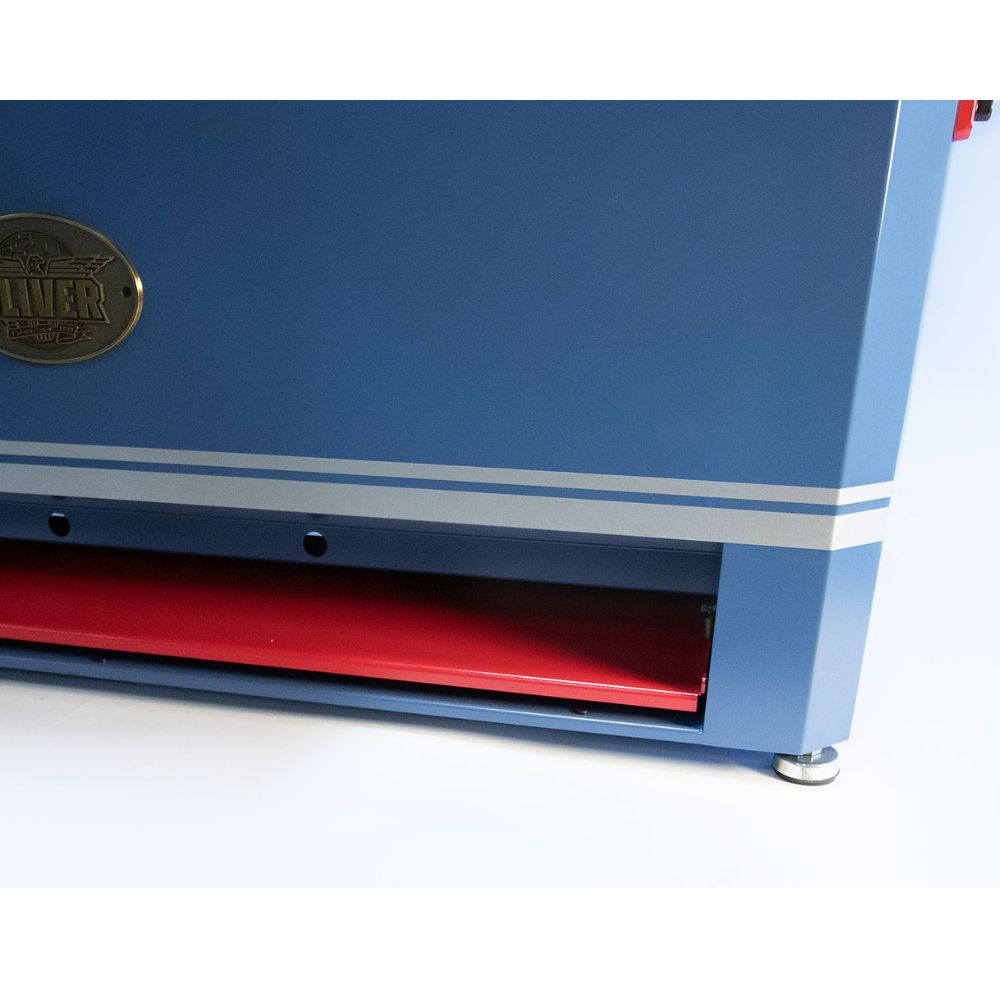

Foot-Activated Emergency Stop for Safety
Safety is a top priority, and the foot-activated emergency stop switch allows for immediate shutdown in case of an emergency. Stay in control and keep your workspace accident-free.

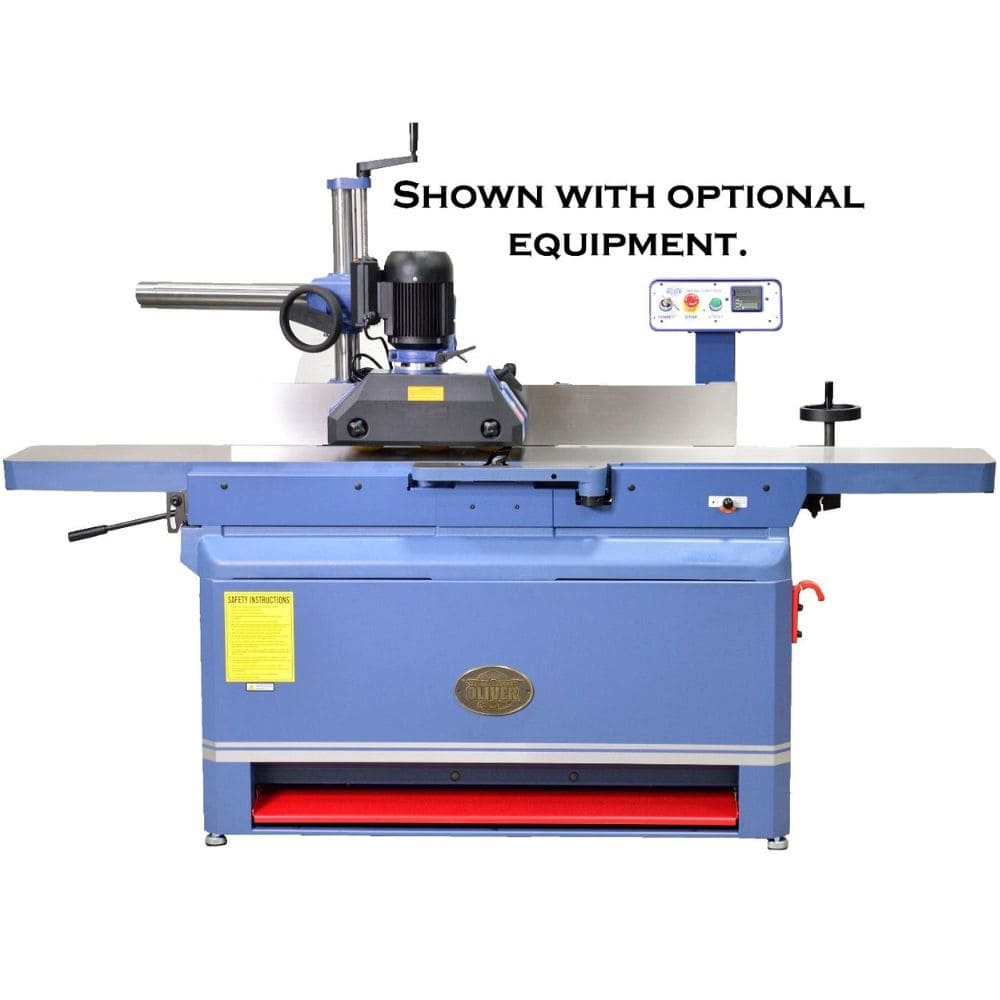

Pre-Drilled Bracket for Optional Power Feeder
Looking to boost productivity? This jointer comes pre-drilled for an optional power feeder, making it easy to automate material feeding for a faster and more efficient workflow.
From rough lumber to refined masterpieces—effortlessly
What's included? Oliver Machinery 16” Parallelogram Jointer
- 16" Parallelogram Jointer w/ Oliver HCX Helical Cutterhead 76 Four-Sided Carbide Inserts
- Extra-Long Precision-Ground Table
- Solid Cast Iron Fence with 45°/90° Stops
- Wixey Digital Readout (DRO)
- Handwheel-Controlled Infeed Table
- Lever-Controlled Outfeed Table
- Fully Enclosed Cabinet with 6" Dust Port
- Pre-Drilled Bracket for Optional Power Feeder
- User Manual & Setup Guide
Cut once, admire forever—accuracy you can trust
Specifications Oliver Machinery 16” Parallelogram Jointer
-
Model & Power – 4275C with a 5HP, 1Ph motor
-
Table Dimensions – 16” x 100” precision-ground cast iron table
-
Table Height – 34-3/4”
-
Fence Dimensions – 47”L x 6”W solid cast iron fence
-
Fence Tilt – Adjustable with positive stops at 45° and 90°
-
Cutterhead Type – Oliver HCX helical cutterhead with 76 inserts
-
Cutterhead Speed – 5,500 RPM
-
Depth of Cut – Maximum 1/8” per pass
-
Rabbeting Capacity – Up to 3/4” depth
-
Dust Collection – 6-inch dust port
-
Drive System – Poly V-belt
-
Overall Dimensions – 100”L x 40”W x 41”H
-
Machine Weight – 1,020 lbs. net, 1,320 lbs. gross
Product Manual & Assembly Oliver Machinery 16” Parallelogram Jointer
Unlock the full potential of your jointer with our easy-to-follow manuals and in-depth videos. Get expert guidance on setup, operation, and maintenance for precision results every time.
Oliver Machinery 16” Parallelogram Jointer Manual
